Laser guided forklift is a long-time developed AGV product published by OKAGV. The oversea markets launching showed the technical confidence in this industry.  The AGV consists of the vehicle body part, vehicle controller, moving& turning unit, laser orientation scanner, laser safety protection device, sensor etc.  Laser scanner and protection device adopted synchronized localization technique, the laser scanner detect the area terrain, and depicting a map in its internal IPC, thus the AGV moving trace and position can be located, reducing moving route, increasing work efficiency.

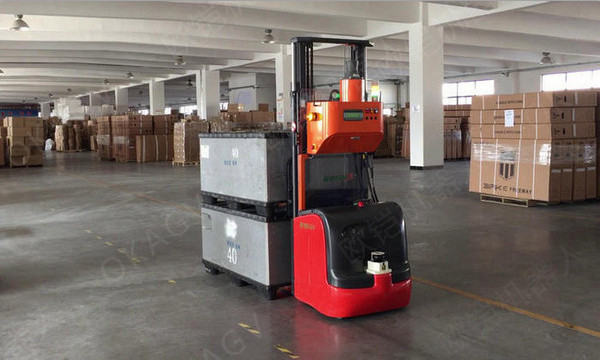

Laser guided forklift AGV

LGV forklift

laser guided vehicle customized LGV

Laser navigation AGV specs:

AGV Type

 Laser navigation AGV

Size

L2250*W800*H700mm customized

Control

Steered wheel

Navigation

Laser guided

Moving

Forward, backward, turning, route picking, automatically going in and out elevator

Communication

Wireless communication(option

Driving mode

Front-wheel drive and turning

Loading capacity

1000KG, 2000KGcustomized

Moving speed

0-72m/min (customized)

Turning radius

Min 1850mm

Guidance accuracy

5mm

Working time

24hs

Gradeability

3-5

Stop accuracy

5mm

Charging mode

Manually (auto charge optional)

Driving power

DC24V

Safety sensor range

0-5m, emergency stop distance<20mm

Battery

Maintenance-free, consecutive discharging time>16000

Working environment

 Indoor temp0~40Relative humidity40%~80%

Safety protection

Laser obstacle sensor+ mechanical anti-collision system

Designed lifespan

>10 years
